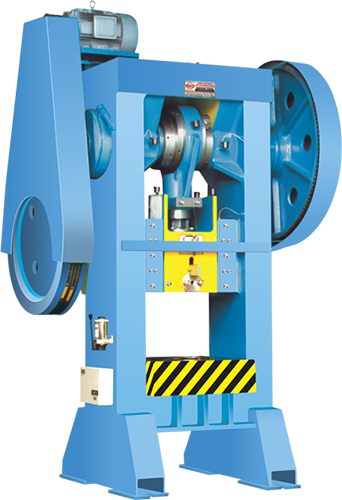

Power Press (H Type)

Power Press (C Type)
Capacity in Tons 20 30 50 75 100 150 200 250 300 400 500
Table Size 355 ×
405
405 ×
455
455 ×
510
535 ×
560
585 ×
610
635 ×
660
760 ×
760
850 ×
900
925 ×
950
1025 ×
1050
1100 ×
1100
Distance between Bed to Ram 250 280 305 355 400 450 500 550 600 650 700
Stroke Length (Adjustable) 65 75 90 100 110 125 150 150 175 175 200
Adjustment in Slide 28 30 35 40 45 50 60 70 75 85 90
Shank Hole 30 35 40 45 50 55 65 70 75 80 90
No. of Strokes (RPM) 50 45 45 40 40 35 30 30 25 20 20
Height From Floor To Top of Bolster 750 750 750 750 750 800 825 850 850 875 875
Bed Opening (Dia ) 100 125 150 175 200 225 250 275 300 325 325
Motor Power HP/RPM 2/
1440
3/
1440
5/
1440
7.5/
1440
10/
1440
15/
1440
20/
1440
25/
1440
30/
1440
40/
1440
50/
1440
Motor Pulley Dia (Inches) B-5 B-5 B-5 B-6 B-7 C-7 C-8 C-8 C-9 C-9 C-10
