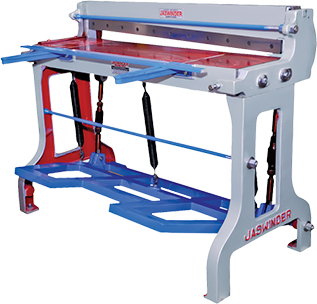

Treadle Shearing Machine

Power Press (C Type)
Shear Size 12" 18" 24" 30" 36" 40" 50"
Length of Bed 14 ½” 20 ½” 28 ¼” 33 ¾” 40 ¾” 43 ¾” 58 ¼”
Width of Bed 10" 10" 11" 11 ¼” 11 ¾” 13" 14"
Shear M. Sheets upto 24swg. 24swg. 24swg. 22swg. 22swg. 20swg. 20swg.
Length of Cut one Stroke 12" 18" 24" 30" 36" 40" 50"
Size of Blades 12½”x2½” 18 ½”x2 ½ 25"x2 ½”x 30 ¾”x2 ½ 37"x2 ½”x 40 ¾”x2 ½ 51"x2 ½”x ½”
Height of Machines 40" 40" 41" 41" 44" 44" 45"
No. of Tensile Springs 1 1 2 2 2 2 3
