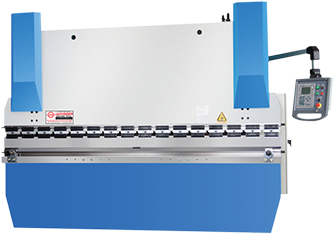

Hydraulic Press Brake

Power Press (C Type)


Model Pressing Force Bending Lenght Distance Between Max.
Daylight		 Stroke Table Height Throat Depth Approach Speed (Max) Pressing Speed Max Return Speed Motor Power
JPB TONS MM MM MM MM MM MM MM/SEC. MM/SEC. MM/SEC. H.P.
2115 80 2100 1600 380 150 900 250 100 10 100 10
2520 80 2500 2000 380 150 900 250 100 10 100 10
3125 80 3100 2600 380 150 900 250 100 10 100 10
2520 120 2500 2000 380 150 900 250 100 10 100 10
3125 120 3100 2600 380 150 900 250 100 10 100 10
4135 120 4100 3500 380 150 900 250 100 10 100 10
2520 150 2500 2000 400 150 900 250 80 10 80 15
3125 150 3100 2600 400 150 900 250 80 10 80 15
4337 150 4300 3500 400 150 900 250 80 10 80 15
3125 200 3100 2500 425 180 900 250 80 10 80 15
4337 200 4300 3700 425 180 900 250 80 10 80 15
3125 260 3100 2500 425 200 900 250 80 10 80 15
3125 340 3100 2500 450 225 900 250 70 10 70 20
3125 400 3100 2500 475 250 900 250 65 10 65 20

Product Range
